S-3322 SWIVEL HOOKS WITH BEARING
 |
Suitable for frequent
rotation under load.
|
New anti-friction bearing design allows hook to
rotate freely under load.
- Capacities ranging from 2 through 15 metric tonnes.
- Forged - Quenched and Tempered.
- Proper design, careful forging, and precision controlled quench
and tempering gives maximum strength without excessive weight
and bulk.
- Low profile hook tip designed to utilize Crosby S-4320 or PL-N
latch kit.Simply purchase the latch assemblies listed and shown on
pages 97-99. Even years after purchase of the original hook, latch
assemblies can be added.
- S-3322 hooks incorporate markings forged into the product which
address two (2) QUIC-CHECK® features:
- Deformation Indicators -- Two strategically placed marks,
one just below the shank or eye and the other on the hook
tip, which allows for a QUIC-CHECK® measurement to
determine if the throat opening has changed, thus indicating
abuse or overload.
- Angle Indicators — Indicates the maximum included angle
which is allowed between two (2) sling legs in the hook.
These indicators also provide the opportunity to approxi-
mate other included angles between two sling legs.
For other swivel hooks designed to rotate under load, see pages 95,103,106, 111-115. Use in corrosive environment requires shank and nut
inspection in accordance with ASME B30.10-1.2.1(b)(2)(c) 2000. |
U.S. Patents 5,381,650 & 5,193,480 & 5,103,755 and foreign equivalents.
Working
Load Limi
(t)*
Carbon |
S-3322
Stock No. |
L-3322
Stock No.† |
Weight Each
(kg) |

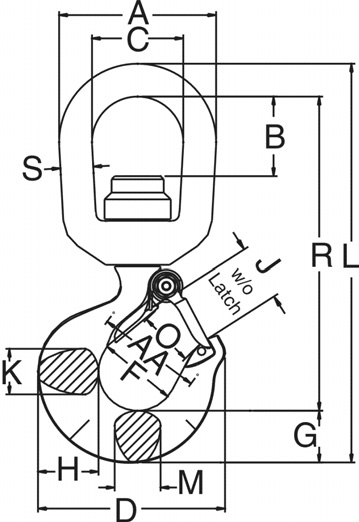

Dimensions
(mm) |
Rep. Latch
Stock No. |
| А |
В |
С |
D |
F |
G |
H |
J |
K |
L |
М |
О |
R |
S |
AA |
| 2 |
1028605 |
1028609 |
1,13 |
51,0 |
20,8 |
31,8 |
72,5 |
31,8 |
18,5 |
20,6 |
23,6 |
16,0 |
144 |
16,0 |
23,6 |
116 |
9,65 |
38,1 |
1096421 |
| 3 |
1028614 |
1028618 |
1,72 |
63,5 |
33,3 |
38,1 |
80,0 |
35,1 |
21,3 |
23,9 |
24,6 |
18,0 |
170 |
18,0 |
24,6 |
136 |
12,7 |
50,8 |
1096468 |
| 5 |
1028623 |
1028627 |
3,17 |
76,0 |
38,1 |
44,5 |
91,0 |
38,1 |
25,4 |
29,5 |
26,9 |
22,4 |
197 |
22,4 |
26,9 |
155 |
16,0 |
50,8 |
1096515 |
| 7 |
1028632 |
1028636 |
6,35 |
76,0 |
38,1 |
44,5 |
102 |
41,1 |
28,7 |
33,3 |
30,2 |
23,9 |
210 |
23,9 |
29,5 |
165 |
16,0 |
50,8 |
1096562 |
| 11 |
1028641 |
1028645 |
10,1 |
89,0 |
41,7 |
50,8 |
123 |
51,0 |
36,6 |
41,4 |
38,1 |
33,3 |
246 |
28,7 |
35,8 |
191 |
19,1 |
63,5 |
1096609 |
| 15 |
1028650 |
1028654 |
17,1 |
116 |
58,0 |
63,5 |
160 |
63,5 |
46,0 |
52,5 |
45,2 |
42,2 |
317 |
36,6 |
42,9 |
245 |
25,4 |
76,2 |
1096657 |
| |
* NOTE: Proofload is 2.5 times working load limit. Designed with a 4.5 to 1 design factor.
† Supplied with latch attached.
|
