S-319 / S-319N Crosby® Shank Hooks

S-319 / S-319N

Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK® features.

• Deformation Indicators -- Two strategically placed marks, one just below the shank or eye and the other on the hook up, which allows for a QUIC-CHECK® measurement to determine if the throat opening has changed, thus indicating abuse or overload. To check, use a measuring device (i.e. tape measure) to measure the distance between the marks. The marks should align according to the dimensions in column "AA" on next page. If the measurement does not meet this criteria, the hook should be inspected further for possible damage.

• Angle Indicators -- Indicates the maximum included angle which is allow between two (2) sling legs in the hook. These indicators also provide the opportunity to approximate other included angles between two sling legs.

Chemical analysis and tensile tests performed on each PIC to verify chemistry and mechanical properties.

Patented trademark indicates QUIC-CHECK® product.

Hook ID Codes: A-Alloy Steel, B-Bronze High Strength, C-Carbon Steel.

Working Load Limit (t)*			Hook ID Code	Shank Hooks Stock No.			Shank Length ++	Weight Each (kg)	Rep. Latch Kits
Carbon	Alloy	Bronze	Hook ID Code	Carbon S-319CN	Alloy S-319AN	Bronze S-319BN	Shank Length ++	Weight Each (kg)	S-4320 Stock No.	PL Stock No.	SS-4055 Stock No.
3/4	1.25	.5	D	+1028505	1028701	1028900	Std.	.23	1096325	-	-
1	1.6	.6	F	+1028514	1028710	1028909	Std.	.34	1096374	-	-
1.6	2.5	1	G	+1028523	1028723	1028918	Std.	.45	1096421	-	-
2	3.2	1.4	H	+1028532	1028732	1028927	Std.	.83	1096468	-	-
3.2	5.4	2	I	+1028541	1028741	1028936	Std.	1.67	1096515	1092000	-
5	8	3.5	J	+1028550	1028750	1028945	Std.	3.29	1096562	1092001	-
7.5	11.5	5	K	+1028563	1028765	1028954	Std.	6.12	1096609	1092002	-
10	16	6.5	L	+1028572	1028774	1028963	Std.	8.16	1096657	1092003	-
15	22	10	N	+1028581	1028783	1028972	Std.	16.0	1096704	1092004	-
20	30	-	O	1024386	1024803	-	Std.	32.7	-	1093716	1090161
20	30	-	O	1024402	1024821	-	Long	38.8	-	1093716	1090161
25	37	-	P	1024420	1024849	-	Std.	61	-	1093717	1090189
25	37	-	P	1024448	1024867	-	Long	78	-	1093717	1090189
30	45	-	S	1024466	1024885	-	Std.	83	-	1093718	1090189
30	45	-	S	1024484	1024901	-	Long	97	-	1093718	1090189
40	60	-	T	1024509	1024929	-	Std.	122	-	1093719	1090205
40	60	-	T	1024545	1024965	-	Long	142	-	1093719	1090205
50	75	-	U	1024563	1024983	-	Std.	177	-	1093720	-
50	75	-	U	1024581	1025009	-	Long	193	-	1093720	-
-	100	-	W	-	1025027	-	Std.	277	-	1093721	-
-	100	-	W	-	1025045	-	Long	306	-	1093721	-
-	150	-	X	-	1025063	-	Std.	333	-	1093721	-
-	200	-	Y	-	1025081	-	Std.	463	-	1093723	-
-	300	-	Z	-	1025090	-	Std.	630	-	1093724	-

* NOTE: Proof load is 2 times Working Load Limit. All carbon hooks - average straightening load (ultimate load) is 5 times Working Load Limit. Alloy shank hooks 1.25 ton through 300 ton - average straightening load (ultimate load) is 4 times Working Load Limit. All bronze hooks-average straightening load (ultimate load) is 4 times Working Load Limit.

+ New 319N style hook.

++ See column "Y" on following page for actual length.

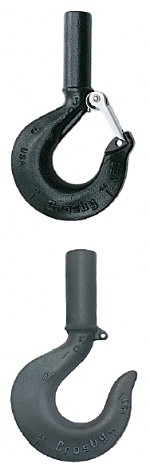

The most complete line of shank hoist hooks. Available 3/4 to 300 tons.
Available in carbon steel, alloy steel, and bronze.
Quenched and Tempered.
Proper design, careful forging, and precision controlled quench and tempering give maximum strength without excessive weight and bulk.
Every Crosby Shank Hook has a pre-drilled cam which can be equipped with a latch. Simply purchase the latch assemblies listed and shown on pages 97-99. Even years after purchase of the original hook, latch assemblies can be added.
Hook Identification code stamped on each hook.

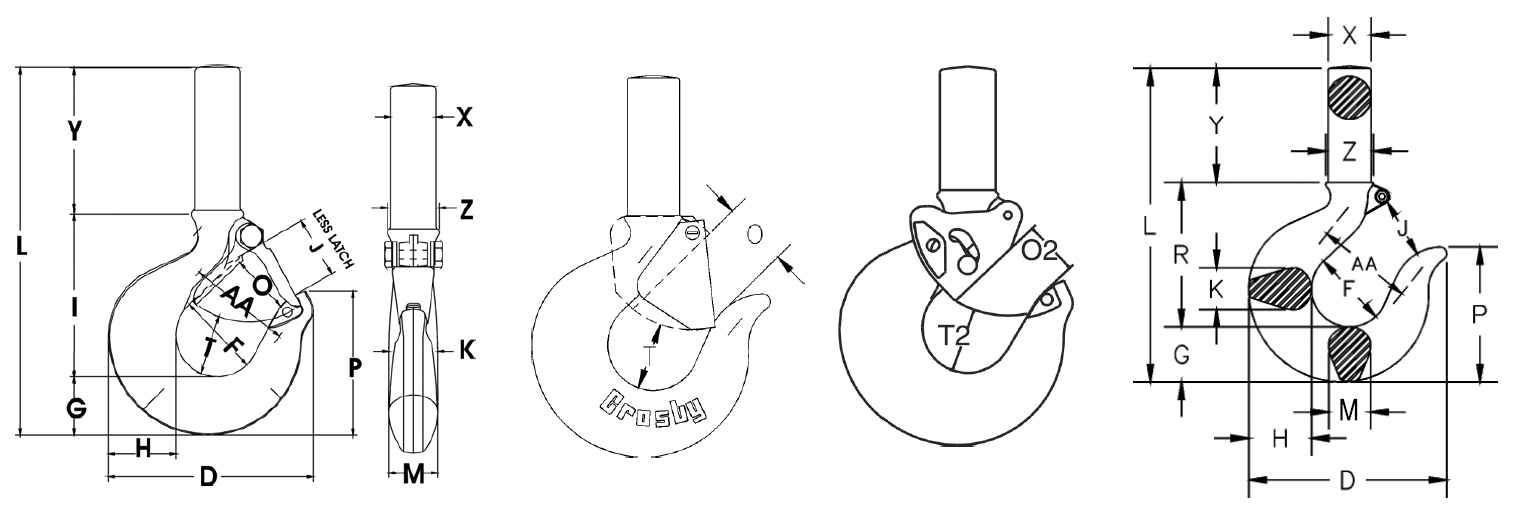

Hook ID Code	Dimensions (mm)
Hook ID Code	D	F	G	H	J	K	L	M	O	O2 ++	P	R	T	T2 ++	X *	Y	Z	AA
D	72.5	31.8	18.5	20.6	23.6	16.0	131	16.0	f23.6	-	49.8	59.5	24.6	-	15.0	52.5	17.5	38.1
F	80.5	35.1	21.3	23.9	24.6	18.0	144	18.0	f24.6	-	56.5	66.0	24.6	-	16.8	57.0	19.8	50.8
G	91.0	38.1	25.4	29.5	26.9	22.4	161	22.4	f26.9	-	62.0	70.0	26.2	-	18.3	66.0	22.4	50.8
H	102	41.1	29.0	33.3	30.2	23.9	181	23.9	f29.5	-	70.5	80.5	29.5	-	22.4	72.0	25.4	50.8
I	123	51.0	36.6	41.4	38.1	33.3	219	28.7	f35.8	25.4	88.0	98.0	38.9	38.1	29.5	87.5	31.8	63.5
J	160	63.5	46.2	52.5	45.2	42.2	265	36.6	42.9	33.3	117	121	49.3	47.8	35.8	97.5	39.6	76.2
K	192	76.0	57.5	67.0	61.0	47.8	318	41.4	56.5	46.0	133	149	62.5	57.2	46.0	111	49.3	101
L	212	82.5	66.0	74.5	66.5	55.5	342	49.3	61.0	51.0	151	162	66.0	58.7	51.0	114	55.5	101
N	263	108	76.5	89.0	86.5	68.5	423	60.5	81.0	69.9	175	207	71.5	65.0	65.0	140	67.0	127
O	346	127	92.0	117	102	76.0	586	76.0	82.5	-	223	240	87.5	-	79.0	254	79.0	165
O	346	127	92.0	117	102	76.0	790	76.0	82.5	-	223	240	87.5	-	79.0	457	79.0	165
P	357	137	116	127	108	92.0	816	76.0	76.0	-	287	318	98.5	-	102	381	102	177
P	357	137	116	127	108	92.0	1044	76.0	76.0	-	287	318	98.5	-	102	610	102	177
S	392	152	129	140	121	94.5	867	82.5	86.0	-	319	356	121	-	106	381	106	203
S	392	152	129	140	121	94.5	1095	82.5	86.0	-	319	356	121	-	106	610	106	203
T	470	178	152	165	146	113	916	99.5	105	-	375	395	145	-	114	368	114	254
T	470	178	152	165	146	113	1208	99.5	105	-	375	395	145	-	114	660	114	254
U	524	197	170	184	165	133	1045	108	124	-	420	492	152	-	127	381	127	292
U	524	197	170	184	165	133	1249	108	124	-	420	492	152	-	127	584	127	292
W	584	173	218	251	149	140	1070	140	114	-	438	468	178	-	178	381	178	305
W	584	173	218	251	149	140	1222	140	114	-	438	468	178	-	178	533	178	305
X	619	171	232	278	152	152	1162	152	114	-	457	467	178	-	184	457	184	330
Y	678	191	248	300	168	178	1283	178	127	-	502	521	203	-	203	508	203	330
Z	765	241	270	329	203	184	1389	203	159	-	576	597	210	-	241	508	241	381

* Dimension before machining t 3/4tC - 22tA dimensions s.
