S-1 Jaw & Hook
EQUIPPED WITH TAPERED ROLLER THRUST BEARING
- Suitable for frequent rotation under load.
- All swivels individually proof tested with certification.
- All hooks furnished with latches assembled.
- All jaws complete with bolts, nuts and cotter pins.
- Pressure lube fitting provided.
- NOT TO BE USED ON DEMOLITION (WRECKING) BALLS.
- Other types and capacities up to 600 tons, available to meet your
requirements.
- IMPORTANT - Crosby Swivels should only be used with the
recommended wire rope. Contact the wire rope manufacturer
for the proper wire rope to be used with Crosby Swivels.
S-1 Jaw & Hook
Swivel
No. |
S-1
Stock
No. |
Working
Load
Limit
(t)* |
Wire
Rope
Size
(mm) |
Weight
Each
(kg) |

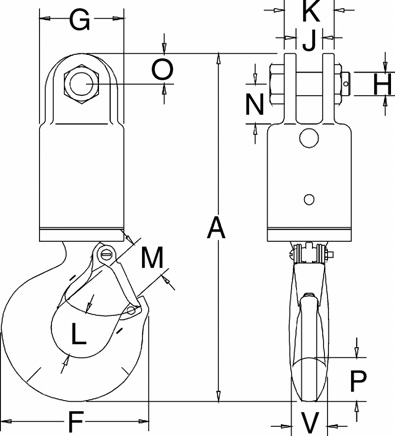

Dimensions
(mm) |
| А |
F |
G |
H |
J |
K |
L |
М |
N |
О |
P |
V |
| 3-S-1 |
297011 |
3 |
13 |
4,45 |
291 |
123 |
70,0 |
19,1 |
22,4 |
41,1 |
38,9 |
35,8 |
33,3 |
25,4 |
36,6 |
28,4 |
| 5-S-1 |
297217 |
5 |
16 |
7,04 |
339 |
160 |
76,0 |
22,4 |
25,4 |
57,0 |
49,3 |
42,9 |
41,1 |
28,4 |
46,0 |
36,6 |
| 8-S-1 |
297413 |
8-1/2 |
19 |
13,3 |
418 |
192 |
102 |
25,4 |
39,5 |
71,5 |
62,5 |
56,5 |
54,0 |
35,1 |
57,0 |
41,1 |
| 10-S-1 |
297618 |
10 |
22 |
21,2 |
502 |
212 |
114 |
38,1 |
44,5 |
86,0 |
66,0 |
61,0 |
89,0 |
44,5 |
66,0 |
49,3 |
| 15-S-1 |
297814 |
15 |
26 |
33,5 |
565 |
263 |
127 |
38,1 |
44,5 |
86,0 |
71,5 |
81,0 |
89,0 |
44,5 |
76,0 |
60,5 |
| 25-S-1 |
298118 |
25 |
- |
64 |
680 |
346 |
152 |
51,0 |
51,0 |
117 |
87,5 |
92,0 |
93,5 |
60,5 |
93,0 |
76,0 |
| 35-S-1 |
298216 |
35 |
- |
100 |
760 |
357 |
165 |
51,0 |
51,0 |
117 |
98,5 |
95,5 |
93,5 |
60,5 |
116 |
81,0 |
| 45-S-1 |
298314 |
45 |
- |
114 |
891 |
392 |
178 |
57,0 |
63,5 |
127 |
121 |
108 |
102 |
76,0 |
129 |
82,5 |
* Individually Proof Tested to 2 times the Working Load Limit. Ultimate Load is 5 times the Working Load Limit.
|
