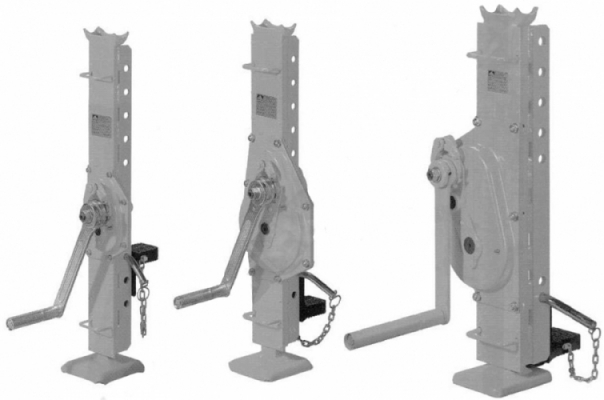

Rack Jacks 1188
Rack jack produced to DIN norms, with adjustable claw allowing an easy iift of any load: durability due to a cylinder gear made of high quality hardened steel
• easy and safe manipulation
• loading on head or on claw
• adjustable claw: 16 positions
• high stability due to a large ground plate
• available with either SIKU safety crank or RAKU ratchet crank
• proved safety system complying with the German Safety Regulations for Lifting and Pulling Equipment BGV D8
Technical data
|
O/No. |
Type |
Crank |

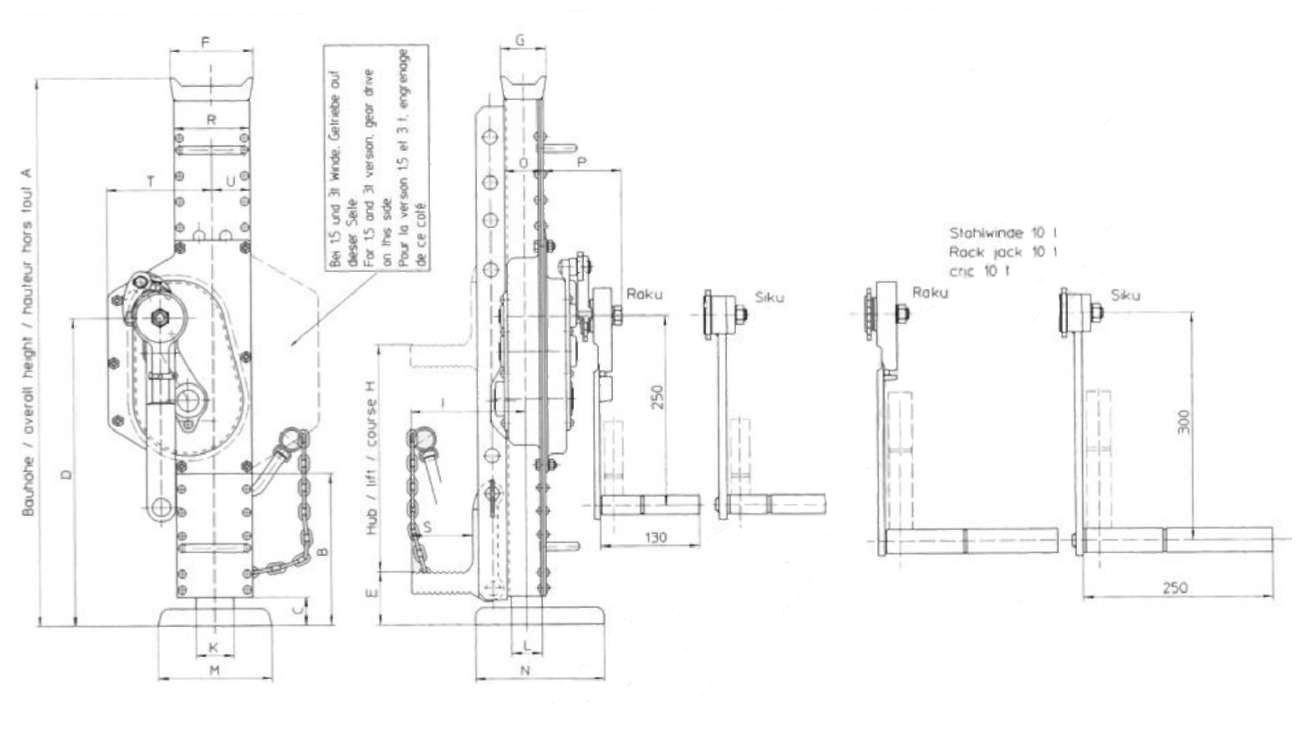

Dimensions |
|
A |
B |
C |
D |
F |
G |
H |
I |
K |
L |
M |
N |
O |
P |
R |
S |
T |
U |
200 025 |
1188.1,5S |
SIKU |
725 |
237 |
37 |
350 |
100 |
50 |
350 |
129 |
35 |
25 |
130 |
140 |
33,5 |
108 |
78 |
70 |
86 |
39 |
|
200 029 |
1188.1,5R |
HAKU |
725 |
237 |
37 |
350 |
100 |
50 |
350 |
129 |
35 |
25 |
130 |
140 |
33,5 |
108 |
78 |
70 |
86 |
39 |
200 026 |
1188.3S |
SIKU |
725 |
182 |
40 |
387 |
100 |
50 |
350 |
131 |
45 |
30 |
130 |
140 |
39,5 |
94 |
92 |
70 |
132 |
72 |
|
200 030 |
1188.3R |
RAKU |
725 |
182 |
40 |
387 |
100 |
50 |
350 |
131 |
45 |
30 |
130 |
140 |
39,5 |
94 |
92 |
70 |
132 |
72 |
200 027 |
1188.5 S |
SIKU |
722 |
200 |
37 |
406 |
110 |
60 |
300 |
151 |
50 |
40 |
150 |
170 |
51 |
105 |
100 |
80 |
139 |
50 |
|
200 031 |
1188.5R |
RAKU |
722 |
200 |
37 |
406 |
110 |
60 |
300 |
151 |
50 |
40 |
150 |
170 |
51 |
105 |
100 |
80 |
139 |
50 |
200 028 |
1188.10S |
SIKU |
797 |
167 |
42 |
448 |
125 |
70 |
300 |
182 |
60 |
50 |
150 |
170 |
62,5 |
115 |
132 |
90 |
184 |
66 |
|
200 032 |
1188.10R |
RAKU |
797 |
167 |
42 |
448 |
125 |
70 |
300 |
182 |
60 |
50 |
150 |
170 |
62,5 |
115 |
132 |
90 |
184 |
66 |
Position of claw |
200 025 |
1188.1,5S |
E |
60 110 145 160 195 245 355 405 440 455 490 505 540 555 590 640 |
200 029 |
1188.1.5R |
E |
60 110 145 160 195 245 355 405 440 455 490 505 540 555 590 640 |
200 026 |
1188.3S |
E |
B5 115 145 165 195 245 360 410 440 460 490 510 540 560 590 640 |
200 030 |
118B.3R |
E |
65 115 145 165 195 245 360 410 440 460 490 510 540 560 590 640 |
200 027 |
1188.5S |
E |
75 135 180 240 360 435 465 485 535 540 590 640 |
200 031 |
1188.SR |
E |
75 135 180 240 360 435 465 485 535 540 590 S40 |
200 028 |
1188.10S |
E |
75 110 185 220 370 425 480 490 535 555 600 620 665 730 |
200 032 |
1188.10R |
E |
75 110 185 220 370 425 480 490 535 555 600 620 665 730 |
|
Technical data |
1188.1,5 |
1188.3 |
1188.5 |
1188.10 |
|
admissible load |
1,5 t |
3t |
5.1 |
10 t |
|
gear transmission |
4,5:1 |
9,5:1 |
22,5 : 1 |
24,8 :1 |
|
lift/crank turn |
14 mm |
8 mm |
4 mm |
4 mm |
|
crank force |
190 M |
250 N |
270 N |
360 N |
|
weight |
16,5 kg |
22 kg |
32 kg |
52 kg |
|
