Rack Jacks 11

Rack jack produced to DIN norms, with lifting housing and solid claw, allowing an easy lift of any load. - durability, thanks to a cylinder gear made of high quality hardened steel

• easy and safe manipulation

• loading on head or on claw

• high stability due to a large ground plate

• available with either SIKU safety cranks or RAKU ratchet cranks

• proved safety system complying with the German Safety Regulations for Lifting and Pulling Equipment BGV D8

lift	480 mm
lift / crank turn:
- low gear	1,06 mm
- fast gear	10,6 mm
crank force at 8 t	140 N
weight approx.	75 kg

Technical data

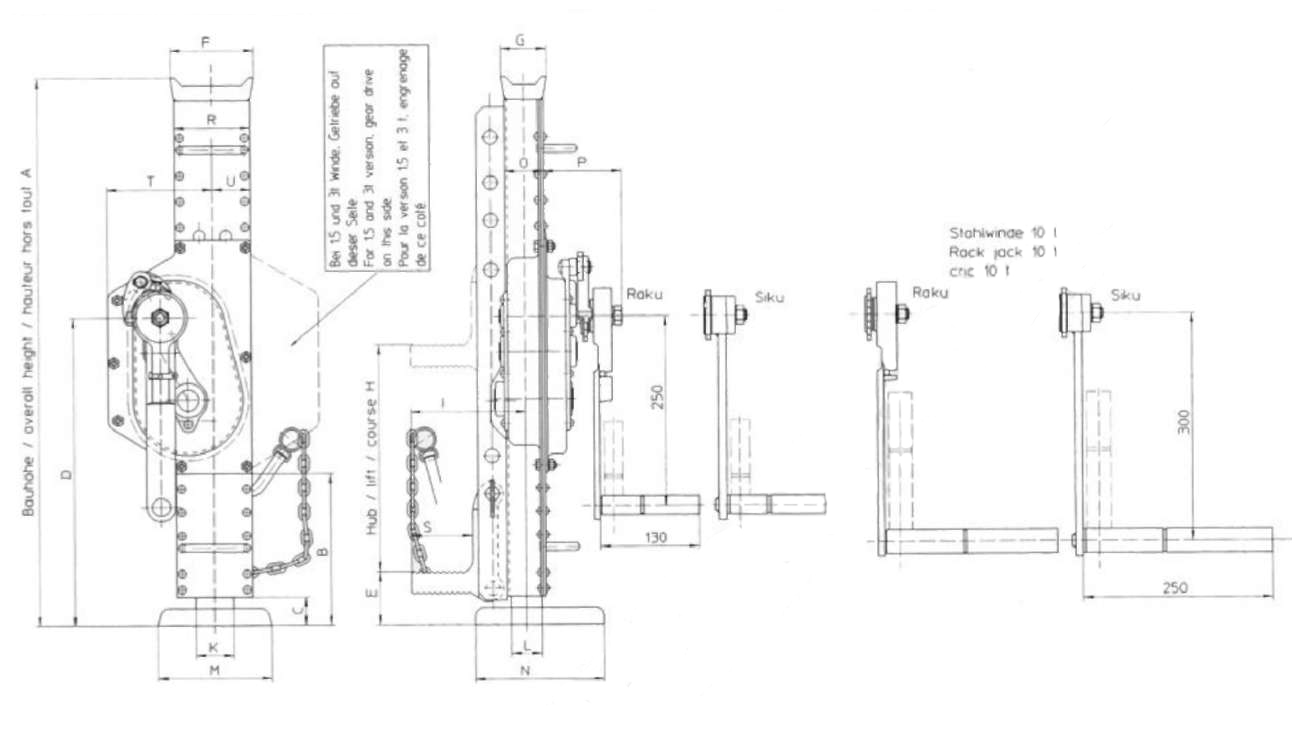

O/No.	Type	Crank	Dimensions
			A	B	C	D	E	F	G	H	I	K	L	M	N	O	P	R	S	T	U
200 001	11.1,5 S	SIKU	72E	237	37	350	70	100	50	350	84	35	25	130	140	33,5	108	78	60	88	39
200 007	11.1,5 R	RAKU	725	237	37	350	70	100	50	350	84	35	25	130	140	33,5	108	78	60	86	39
200 002	11.3 S	SIKU	725	182	40	387	79	100	50	350	92	45	30	130	140	39.5	94	92	65	132	72
200 008	11.3 R	RAKU	725	182	40	387	79	100	50	350	92	45	30	130	140	39,5	94	92	65	132	72
200 003	11.5 S	SIKU	722	200	37	406	77	110	60	300	104	50	40	150	170	51	105	100	70	139	50
200 009	11.5 R	RAKU	722	200	37	406	77	110	60	300	104	50	40	150	170	51	105	100	70	139	50
200 004	11.10 S	SIKU	797	167	42	44S	82	125	70	300	128	60	50	150	170	62,5	115	132	85	164	66
200 010	11.10 R	RAKU	797	167	42	448	82	125	70	300	128	50	50	150	170	52,5	115	132	85	184	66

Technical data	11.1,5	11.3	11.5	11.10
admissible load	1,51	3t	51	101
gear transmission	4,5:1	9,5:1	22,5:1	24,8; 1
lift/crank turn	14 mm	8 mm	4 mm	4 mm
crank force	190 N	250 N	270 N	360N
weight	12,5 kg	20 kg	27 kg	42 kg
