IPHTONZ/IPHSZ - HORIZONTAL TRANSPORT OF PLATES: NON SAGGING



Model IPHTONZ
Model IPHTONZ
The IPHTONZ and IPHSZ horizontal safety lifting clamps are suitable for the lifting and transfer in horizontal position of non-sagging steel plates. Light-weight clamp.

The IPHTONZ/IPHSZ lifting clamps may also be used hanging vertically under a spreader beam.

The IPHSZ is equal to the IPHTONZ but with a higher jaw aperture.

For correct use of the clamp, please consult fig. 2 & 3. Higher WLL and different jaw-apertures upon request.
Model IPHTONZ
Model IPHTONZ


Before using the clamp always read the instruction manual supplied with the clamp.

Model
Order
No.
WLL
per pair
in L.
Jaw

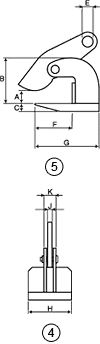

Dimensions in mm
Weight
per pair
kg
A
B
C
D
E
F
G
H
J
K
0,75-IPHTONZ
5343
0,75
0-30

75

16
-
16

64

118

81

12

46

4,0

1,5-IPHTONZ
5344

1,5

0-60

114

16
-
22

87

153

110

16

52

9,0

3-IPHTONZ
5477

3,0

0-60

117

20
-
26

87

163

120

20

69

14,0

4,5-IPHTONZ
5483

4,5

0-60

132

25
-
30

87

183

130

20

69

20,0

6-IPHTONZ
5484

6,0

0-60

143

25
-
36

96

213

130

20

69

25,0

9-IPHTONZ
5485

9,0

0-60

157

30
-
43

110

223

140

25

86

31,0

12-IPHTONZ
5486

12,0

0-60

172

30
-
47

120

254

150

25

88

41,0

15-IPHTONZ
5487

15,0

0-60

183

30
-
47

130

284

200

25

88

54,0

25-IPHTOZ
5119

25,0

0-60

169

40
-
47

170

300

220

32

113

78,0


3-IPHSZ
5308

3,0

0-100

192

20
-
26

160

222

140

20

65

22,0

6-IPHSZ
5311

6,0

0-100

200

25
-
32

160

249

180

20

69

36,4

9-IPHSZ
5313

9,0

0-100

220

30
-
35

170

270

190

25

85

49,2

12-IPHSZ
5318

12,0

0-100

220

35
-
47

170

270

200

25

95

62,8


Spare parts for IPHTONZ
and IPHSZ
safety lifting clamps:
Order
no.
1. body complete

1041

3. camsegment complete
1234
6. camsegment shaft complete
1046
