IPBHZ - HORIZONTAL TRANSPORT OF BEAMS: TRANSFER AND STACKING
 | |
Model IPBHZ
|
|
Safety lifting clamp IPBHZ
is suitable for the lifting and transfer of steel beams
and plates.
The IPBHZ lifting clamp is fitted with a locking device for both
open and closed positions, which ensures complete safety.
Also suitable for woring in conjunction with an angle bench,
guillotine, round roller, etc.
This clamp can grip beams on flanges or at
head-end.
For correct use of the clamp, please consult fig. 2 &3.
Higher WLL and different jaw-apertures upon request. |
 | |
Model IPBHZ
|
|
Before using the clamp always read the
instruction manual supplied with the clamp.

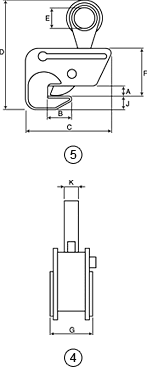

Model |
Order
No. |
WLL
per pce
in L. |
Jaw |
Dimesnsions
in mm |
Weight
per pce
kg |
AB |
C |
D |
E |
F |
G |
H |
I |
J |
K |
| 0,75-IPBHZ |
5461 |
0,75 |
0-25 |
40 |
148 |
220 |
50 |
130 |
- |
69 |
33 |
22 |
3,0 |
| 1,5-IPBHZ |
5462 |
1,5 |
0-25 |
60 |
200 |
255 |
50 |
153 |
- |
73 |
35 |
28 |
6,0 |
| 3-IPBHZ |
5463 |
3,0 |
0-40 |
80 |
227 |
325 |
70 |
188 |
- |
112 |
38 |
32 |
10,5 |
| 4,5-IPBHZ |
5464 |
4,5 |
0-40 |
112 |
284 |
413 |
70 |
251 |
- |
116 |
80 |
40 |
25,0 |
|
|
|
Spare parts for IPBHZ
safety lifting clamps: |
Order
no. |
| 1. body complete |
1041 |
| 2. hoisting eye complete |
1235 |
| 3. camsegment complete |
1234 |
| 4. latch complete |
1233 |
| 5. spring for latch complete |
1063 |
6. camsegment shaft
complete |
1046 |
| 7. hoisting eye shaft complete |
1047 |
| 9. distance collar complete |
1337 |
| 34. latch plate complete |
1353 |
|
|
