IPHOZ - HORIZONTAL TRANSPORT OF PLATES: ALSO WITH SAGGING



Model IPHOZ
Model IPHOZ
Horizontal safety lifting clamp IPHOZ is suitable for the lifting and transfer of sagging or bending plates in horizontal position. Very light-weight construction. The maximum top-angle is 60° when using IPHOZ clamps.

The IPHOZ lifting clamps can also be applied in combination with long chains or two-leg slings.

For correct use of the clamp, please consult fig. 2 &3.
Higher WLL and different jaw-apertures upon request.
Model IPHOZ
Model IPHOZ


Before using the clamp always read the instruction manual supplied with the clamp.

Model
Order
No.
WLL
per pair
in L.
Jaw

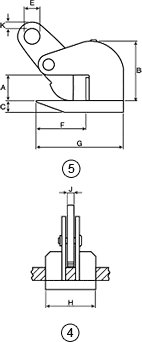

Dimensions in mm
Weight
per pair
kg
A
B
C
D
E
F
G
H
J
K
0,75-IPHOZ
5401
0,75
0-30
94
16
-
16
70
118
81
12
12

6,0

1,5-IPHOZ
5402
1,5
0-45
133
16
-
22
125
192
100
16
12

11,0

3-IPHOZ
5403
3,0
0-45
137
20
-
26
125
200
120
20
10

16,0

4,5-IPHOZ
5404
4,5
0-45
138
25
-
30
126
220
120
20
10

17,0

6-IPHOZ
5405
6,0
0-60
171
30
-
36
135
235
130
20
20

31,0

9-IPHOZ
5406
9,0
0-60
211
30
-
43
166
276
160
25
20

41,0

12-IPHOZ
5407
12,0
0-60
217
40
-
47
168
294
190
25
19

76,0

15-IPHOZ
5408
15,0
0-60
220
40
-
47
183
317
250
25
22

76,0



Spare parts for IPHOZ
safety lifting clamps:
Order
no.
1. body complete

1041

3. camsegment complete
1234
6. camsegment shaft complete
1046
