IPDV - VERTICAL TRANSPORT OF DRUMS: DRUMS
 | |
Model IPVD |
|
Vertical safety lifting clamp IPDV
is suitable for the vertical lifting and transfer of steel
drums carrying liquids with a capacity of 215 up to 225 litres.
The IPDV lifting clamp is a light-weight clamp which may be used
single-handedly. The clamp is fitted with a hoisting eye and
is ready for immediate use.
The IPDV lifting clamp may be used both singly or, alternatively,
several clamps may be used at one time under a spreader beam,
for example in the process of loading and unloading of
containers and cargo holds.

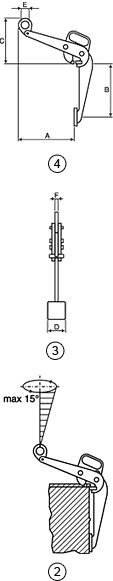

For correct use of the clamp, please consult fig. 2.
|
 | |
Model IPVD |
|
Before using the clamp always read the instruction manual supplied with the clamp.
Model |
Order
No. |
WLL
per pce
in L. |
Jaw |
Dimensions
in mm |
Weight
per pce
kg |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
| 0,5-IPDV |
0118 |
0,5 |
300 |
375 |
290 |
150 |
50 |
12 |
- |
- |
- |
- |
7,1 |
|
|
|
Spare parts for IPDV
safety lifting clamps: |
Order
no. |
| 2. hoisting eye complete |
1235 |
| 7. hoisting eye shaft complete |
1047 |
| 8. lower part body complete |
1340 |
| 21. upper part body complete |
1348 |
| 59. grip complete |
0341 |
|
|
