IPCC - VERTICAL TRANSPORT OF PIPE SECTIONS CONCRETE, PIPE SECTIONS AND WELLS
 | |
Model IPCC |
|
Vertical safety lifting clamp IPCC
is suitable for the vertical lifting and transfer of concrete
pipe sections and wells.
To be used exclusively per pair or per three clamps.
Very easy application and removal of the clamp thanks to the built-in carrying-grips.

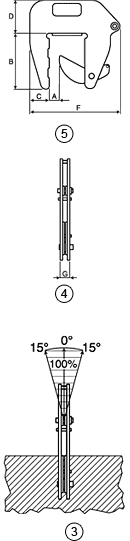

For correct use of the clamp, please consult fig. 2 & 3.
Higher WLL and different jaw-apertures upon request. |
 | |
Model IPCC |
|
Before using the clamp always read the instruction manual supplied with the clamp.
Model |
Order
No. |
WLL
per pair
in L. |
Jaw |
Dimensions
in mm |
Weight
per pair
kg |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
| 1-IPCC |
0 037 |
1,0 |
40-140 |
225 |
80 |
146 |
- |
372 |
37 |
- |
- |
- |
18,4 |
|
|
|
| Spare parts for IPDV safety lifting
clamps: |
Order no. |
| 1. body complete |
1041 |
| 3. camsegment complete |
1234 |
| 6. shaft complete |
1046 |
| 49. guiding wheel complete |
1690 |
|
|
