IPHG(U)Z - HORIZONTAL TRANSPORT OF PLATES: WITH LOCKING DEVICE



Model IPHGZ
Model IPHGZ
Horizontal safety lifting clamp IPHGZ is suitable for the lifting and transfer of steel plates (including sagging plates). The IPHGZ lifting clamp is fitted with a locking device for both open and closed positions, which ensures complete safety. These clamps are also suitable for woring in conjunction with an angle bench, guillotine, round roller, etc.

Available in two versions:

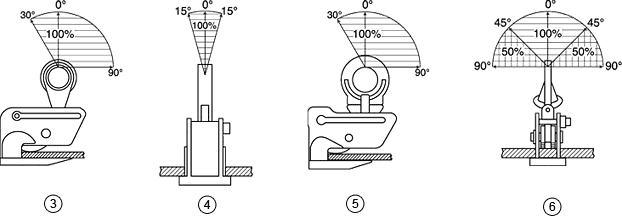

1. IPHGZ: fitted with a fixed hoisting eye.For correct use of the clamp, please consult fig. 3 and 4.
2. IPHGUZ: fitted with a universal hoisting eye. For correct use of the clamp, please consult fig. 5 and 6.

Higher WLL and different jaw-apertures upon request.
Model IPHGUZ
Model IPHGUZ


Before using the clamp always read the instruction manual supplied with the clamp.

Model
Order
No.
WLL
per pce
in L.
Jaw

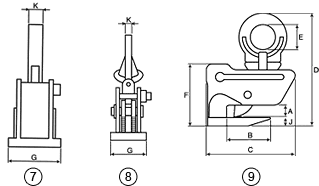

Dimensions in mm
Weight
per pce
kg
A
B
C
D
E
F
G
H
J
K
0,75-IPHGZ
5451
0,75
0-25
82
148
206
50
99
98
-
12
22

4,0

1,5-IPHGZ
5452
1,5
0-25
110
200
250
50
118
90
-
20
28

7,3

3-IPHGZ
5453
3,0
0-40
120
227
305
70
148
120
-
25
32

12,3

4,5-IPHGZ
5454
4,5
0-40
120
284
381
70
181
155
-
30
40

25,0

1,5-IPHGUZ
5455
1,5
0-25
110
232
287
70
139
90
-
20
16

9,0

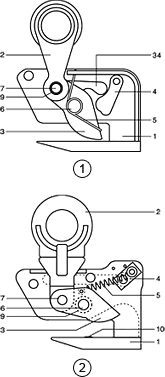

Spare parts for IPHG(U)Z
safety lifting clamps:
Order
no.
1. body complete 1041
2. universal hoisting eye complete 1235
3. camsegment complete 1234
4. latch complete 1233
5. spring for latch complete 1063
6. camsegment shaft complete 1046
7. hoisting eye shaft complete 1047
9. distance collar complete 1337
10. pivot complete 0098
