IPSTARTEC - HORIZONTAL TRANSPORT OF BEAMS: CONTROLLED TILTING
 | | Model IPSTARTEC11 |
|
The IP-STARTEC has been especially

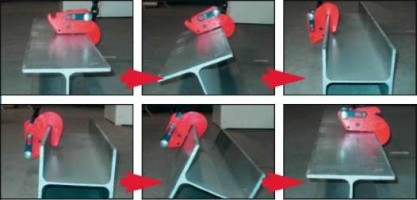

developed for lifting with the body in vertical position, controlled
tilting (see illustrations), transportation
and stakcing of steel H - andl- profiles. By placing
the chain guide in the appropriate position, it is straightforward
to switch from lifting to tilting and back again, which shifts
the center of gravity.
Depending on the measurements and weight there is a version with
jaw opening of 6 -12 mm (WLL of 1500 kg) and a version with a
jaw opening of 6 - 20 mm (WLL of 2500 kg).

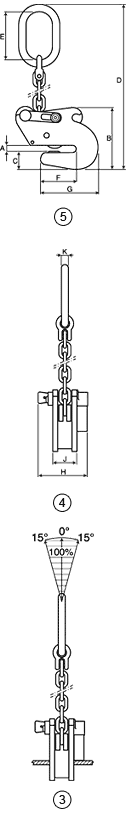

For correct use of the clamp, please consult fig. 2 & 3. |
 | | Model IPSTARTEC11 |
|
Before using the clamp always read the instruction manual supplied with the clamp.
Model |
Order
No. |
WLL
per pce
in L. |
Jaw |
Dimensions
in mm |
Weight
per pce
kg |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
| 1,5-IPSTARTEC11 |
1812 |
1,5 |
6-12 |
140 |
39 |
575 |
110 |
81 |
129 |
54 |
126 |
16 |
6,6 |
| 2,5-IPSTARTEC11 |
1822 |
2,5 |
6-20 |
210 |
55 |
725 |
135 |
115 |
182 |
74 |
140 |
18 |
14,5 |
|
|
|
Spare parts for
IP-STARTEC
safety lifting clamps: |
Order
no. |
1. body complete |
1041 |
| 2. hoisting eye complete |
1235 |
| 3. camsegment complete |
1234 |
| 4. latch complete |
1233 |
| 5. spring for latch complete |
1063 |
| 6. camsegment shaft complete |
1046 |
| 7. hoisting eye shaft complete |
1047 |
10. pivot complete |
0098 |
| 13. latch plate shaft complete |
1339 |
| 20. guiding arm |
1352 |
|
|
