IPVK - VERTICAL TRANSPORT OF DRUMS: DRUMS



Model IPVK
Model IPVK
Safety lifting clamp IPVK is specially design­ed for the transfer of steel drums carrying liquids.

The IPVK lifting clamp is fitted with a locking device which is locked automatically when the clamp is placed onto the drum. Can also be used singularly. Fitted with shackle, therefore ready for immediate use. Can also be supplied as a set of two clamps with a two-leg chain.

For correct use of the clamp, please consult fig. 2 &3.


Before using the clamp always read the instruction manual supplied with the clamp.

Model
Order
No.
WLL
per pce
in L.
Jaw

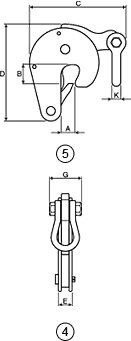

Dimensions in mm
Weight
per pce
kg
A
B
C
D
E
F
G
H
J
K

0,5-IPVK

0116

0,5
17
26

135

132
29
-
51

-

-
11
1,6


Spare parts for IPVK
safety lifting clamps:
Order
no.
1. body complete 1041
2. shacle complete 1615
3. camsegment complete 1234
4. clamping arm complete 0190
5. spring complete 1063
6. body shaft complete 0088
