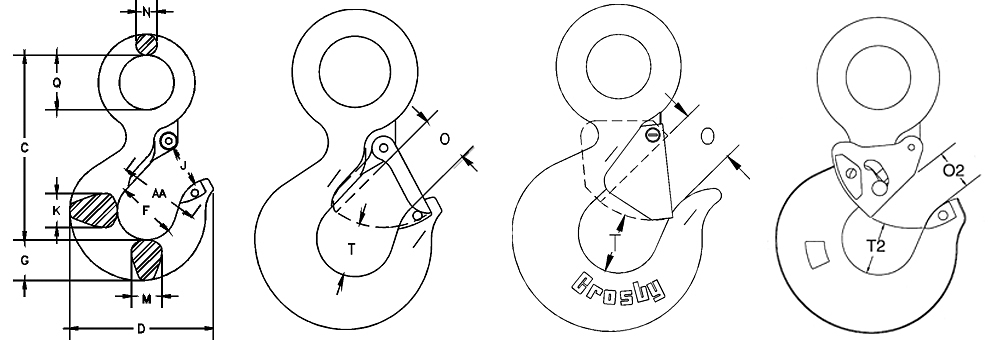

S-320N EYE HOOKS
|
The following additional features have been
Crosby S-320N Eye Hoist Hooks.
(Sizes 3/4 ton Carbon through 22 ton Alloy.) |
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Can be proof tested to 2-1/2 times the working Load Limit.
- Can be Metric Rated at 5:1 Design Factor.
- Low profile hook tip.
- New integrated latch (S-4320) meets the World class standard for lifting.
Heavy duty stamped latch interlocks with the hook tip.
High cycle, long life spring.
When secured with proper cotter pin through the hole in the tip of hook, meets the intent
of OSHA Rule 1926.550(g) for personnel hoisting.
Working Load Limit
(t)* |
Hook
ID
Code |
Eye Hook
Stock No. |
Weight
Each
(kg.) |
Replacement
Latch Kits |
Carbon |
Alloy |
Carbon
S-320C
S.C. |
Carbon
G-320C
Galv. |
Alloy
S-320A
S.C. |
S-4320
Stock No. |
PL
Stock No. |
SS-4055
Stock No. |
,75† |
1,25 † |
D |
1022200 |
1022208 |
1025802 |
,28 |
1096325 |
- |
- |
1† |
1,6 † |
F |
1022211 |
1022219 |
1022386 |
,40 |
1096374 |
- |
- |
1,6† |
2,5 † |
G |
1022222 |
1022230 |
1025811 |
,65 |
1096421 |
- |
- |
2† |
3,2 † |
H |
1022233 |
1022241 |
1025820 |
,94 |
1096468 |
- |
- |
3,2† |
5,4 † |
I |
1022244 |
1022249 |
1025839 |
1,95 |
1096515 |
1092000 |
- |
5† |
8 † |
J |
1022255 |
1022262 |
1025848 |
3,76 |
1096562 |
1092001 |
- |
7,5† |
11,5 † |
K |
1022264 |
1022274 |
1022441 |
6,80 |
1096609 |
1092002 |
- |
10† |
16 † |
L |
1022277 |
1022285 |
1022452 |
9,42 |
1096657 |
1092003 |
- |
15† |
22† |
N |
1022288 |
1022296 |
1022465 |
17,9 |
1096704 |
1092004 |
- |
20 |
31,5 |
О |
1023289 |
- |
1023546 |
27,2 |
- |
1093716 |
1090161 |
25 |
37 |
P |
1023305 |
- |
1023564 |
47,6 |
- |
1093717 |
1090189 |
30 |
45 |
S |
1023323 |
- |
1023582 |
67 |
- |
1093718 |
1090189 |
40 |
60 |
T |
1023341 |
- |
1023608 |
103 |
- |
1093719 |
1090205 |
* Carbon eye hooks .75tC-40tC: proofload is 2 times working load limit. Designed with a 5 to 1 safety factor.
Alloy eye hooks 1.25tA-31.5tA : proofload is 2.5 times working load limit. Designed with a 4 to 1 safety factor.
Alloy eye hooks 37tA - 60tA: proofload is 2 times working load limit. Designed with a 4 to 1 safety factor.
† New 320N style hook
|
