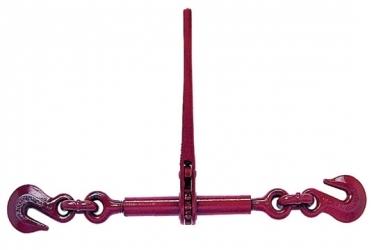

L-140 Standard Ratchet Type Load Binders Lebus® Load Binders
- Upgraded for use with Grades 70, 80 and 100 Chain.
- Utilizes standard Crosby A-323 Alloy Eye Grab Hooks.
- New design "one piece" forged handle.
- Continuous take-up feature provides finite adjustment to tie down load.
- One piece assembly, no bolts or nuts to loosen.
- Ratchet spring is rust proofed.
- All load bearing or holding parts forged.
- Easy operating positive ratchet
L-140
Standard Ratchet Type Load Binders
| Model |
Stock
No. |
Min-Max
Chain
Size
(mm) |
Working
Load
Limit
(t)* |
Proof
Load
(kN) |
Weight
Each
(kg) |
Handle
Length
(mm) |
Barrel
Length
(mm) |
Take
Up
(mm) |

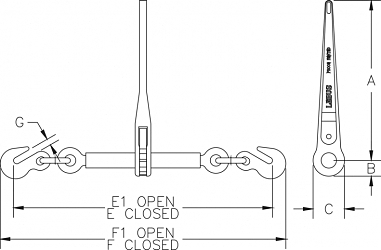

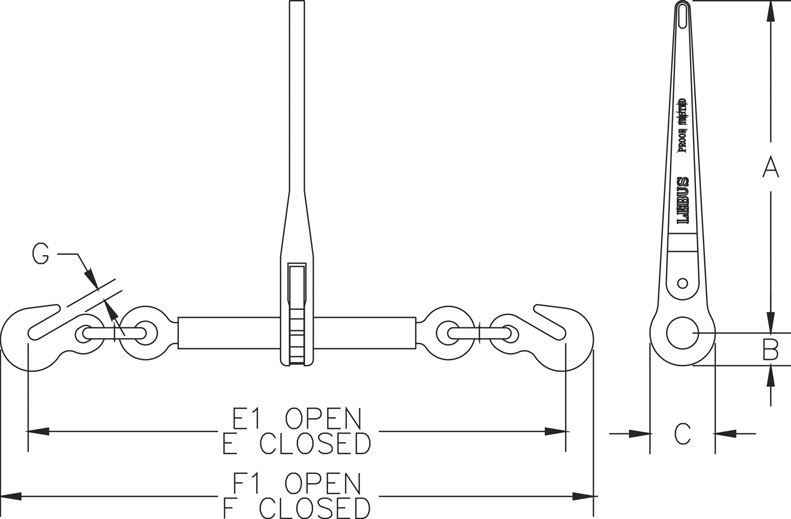

Dimensions
(mm) |
| А |
В |
С |
E |
E1 |
F |
F1 |
G |
| R-7 ** |
1048404 |
8 - 10 |
4,00 |
79 |
5,49 |
356 |
254 |
203 |
356 |
35,1 |
70,0 |
583 |
786 |
638 |
842 |
12,7 |
| R-A ** |
1048422 |
10 - 13 |
6,80 |
134 |
6,66 |
356 |
254 |
203 |
356 |
35,1 |
70,0 |
641 |
845 |
702 |
905 |
16,0 |
| R-С *** |
1048440 |
13 - 16 |
7,26 |
143 |
6,60 |
356 |
254 |
203 |
356 |
35,1 |
70,0 |
670 |
873 |
748 |
951 |
18,3 |
* Ultimate Load is 3 times the Working Load Limit.
** Matches the Working Load Limit of Grade 100 chain for both sizes.
*** Matches the Working Load Limit of Grade 100 chain for 1/2" size.
|
