SNATCH BLOCKS HL SERIES
 |
Stock No. |
WLL
(tons) |
Wire up
to (mm) |
Bearing |

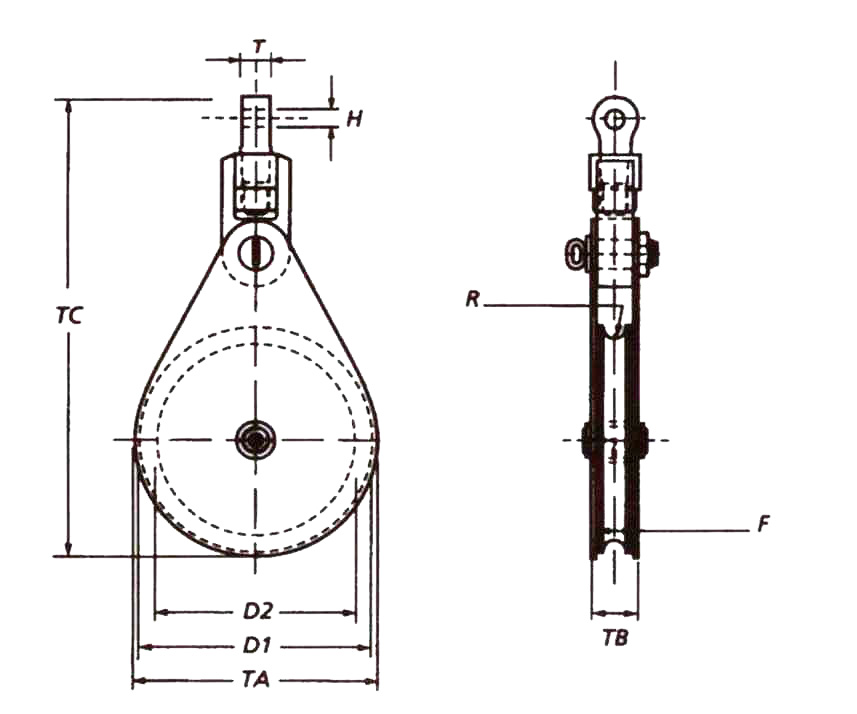

Dimensions (mm) |
Weight
(kgs) |
Dl |
D2 |
F |
H |
R |
T |
ТА |
ТВ |
ТС |
12.008.20.03 |
20 |
26.28 |
RB |
200 |
150 |
70 |
52 |
14.5 |
70 |
212 |
96 |
751 |
70 |
12.008.20.13 |
20 |
26.28 |
BB |
200 |
150 |
70 |
52 |
14.5 |
70 |
212 |
96 |
751 |
70 |
12.010.20.03 |
20 |
26.28 |
RB |
250 |
190 |
70 |
52 |
14.5 |
70 |
262 |
96 |
801 |
81 |
12.010.20.13 |
20 |
26.28 |
BB |
250 |
190 |
70 |
52 |
14.5 |
70 |
262 |
96 |
801 |
81 |
12.012.20.03 |
20 |
26.28 |
RB |
300 |
240 |
70 |
52 |
14.5 |
70 |
312 |
96 |
851 |
95 |
12.01220.13 |
20 |
26.28 |
BB |
300 |
240 |
70 |
52 |
14.5 |
70 |
312 |
96 |
851 |
95 |
12.014.20.03 |
20 |
26.28 |
RB |
350 |
290 |
70 |
52 |
14.5 |
70 |
362 |
96 |
901 |
100 |
12.014.20.13 |
20 |
26.28 |
BB |
350 |
290 |
70 |
52 |
14.5 |
70 |
362 |
96 |
901 |
100 |
12.016.20.03 |
20 |
26.28 |
RB |
400 |
340 |
70 |
52 |
14.5 |
70 |
412 |
96 |
951 |
110 |
12.016.20.13 |
20 |
26.28 |
BB |
400 |
340 |
70 |
52 |
14.5 |
70 |
412 |
96 |
951 |
110 |
12.018.30.03 |
30 |
28.32 |
RB |
450 |
390 |
80 |
60 |
16.5 |
80 |
462 |
112 |
1121 |
155 |
12.018.30.13 |
30 |
28.32 |
BB |
450 |
390 |
80 |
60 |
16.5 |
80 |
462 |
112 |
1121 |
155 |
12.020.30.03 |
30 |
28.32 |
RB |
500 |
430 |
80 |
60 |
16.5 |
80 |
512 |
112 |
1171 |
180 |
12.020.30.13 |
30 |
28.32 |
BB |
500 |
430 |
80 |
60 |
16.5 |
80 |
512 |
112 |
1171 |
180 |
12.024.30.03 |
30 |
28.32 |
RB |
600 |
520 |
80 |
60 |
16.5 |
80 |
612 |
112 |
1271 |
250 |
12.024.30.13 |
30 |
28.32 |
BB |
600 |
520 |
80 |
60 |
16.5 |
80 |
612 |
112 |
1271 |
250 |
Minimum Ultimate Strength = 4 x WLL.
WLL= Working Load Limit on head fitting.
RB= Roller bearing.
BB= Bronze bushing.
|
