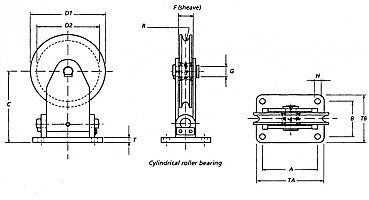

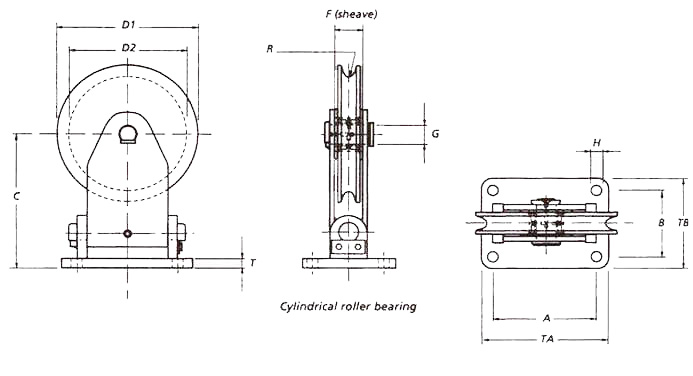

HINGED LEAD BLOCKS
Stock No. |
WLL
(tons) |
Wire size
up to (mm) |
Bearing |
Dimensions (mm) |
Weight
(kgs) |
D1 |
D2 |
A |
B |
C |
F |
G |
H |
T |
R |
TA |
TB |
25.125.01.50 |
1 |
10 |
Bronze |
125 |
105 |
90 |
70 |
128 |
27 |
22 |
9 |
8 |
5.5 |
115 |
95 |
3.5 |
25.150.02.50 |
2 |
12 |
Bronze |
150 |
120 |
115 |
85 |
160 |
40 |
30 |
11 |
10 |
6.5 |
140 |
110 |
6.5 |
25.200.03.50 |
3 |
14 |
Bronze |
200 |
165 |
150 |
95 |
197 |
40 |
30 |
13.5 |
12 |
7.5 |
180 |
125 |
11 |
25.250.04.50 |
4 |
18 |
Bronze |
250 |
210 |
190 |
120 |
240 |
45 |
35 |
17.5 |
15 |
9.5 |
230 |
160 |
21 |
25.300.06.50 |
6 |
20 |
Bronze |
300 |
255 |
220 |
150 |
295 |
50 |
40 |
22 |
20 |
11 |
270 |
200 |
33 |
25.350.08.50 |
8 |
22 |
Bronze |
350 |
305 |
270 |
160 |
350 |
50 |
45 |
26 |
25 |
12 |
330 |
220 |
52 |
25.400.10.50 |
10 |
24 |
Bronze |
400 |
345 |
300 |
190 |
400 |
60 |
50 |
32 |
30 |
13 |
370 |
260 |
80 |
Minimum Ultimate Strength = 4 x WLL.
Stock No. |
WLL
(tons) |
Wire size
up to (mm) |
Bearing |
Dimensions (mm) |
Weight
(kgs) |
D1 |
D2 |
A |
B |
C |
F |
6 |
H |
T |
R |
TA |
TB |
25.125.01.51 |
1 |
10 |
2 x Ball |
125 |
105 |
90 |
70 |
128 |
27 |
22 |
9 |
8 |
5.5 |
115 |
95 |
3.5 |
25.150.02.51 |
2 |
12 |
2 x Ball |
150 |
120 |
115 |
85 |
160 |
40 |
30 |
11 |
10 |
6.5 |
140 |
110 |
6.5 |
25.200.03.51 |
3 |
14 |
2 x Ball |
200 |
165 |
150 |
95 |
197 |
40 |
30 |
13.5 |
12 |
7.5 |
180 |
125 |
11 |
25.250.04.51 |
4 |
18 |
Straight |
250 |
210 |
190 |
120 |
240 |
45 |
35 |
17.5 |
15 |
9.5 |
230 |
160 |
21 |
25.300.06.51 |
6 |
20 |
Straight |
300 |
255 |
220 |
150 |
295 |
50 |
40 |
22 |
20 |
11 |
270 |
200 |
33 |
25.350.08.51 |
8 |
22 |
Straight |
350 |
305 |
270 |
160 |
350 |
50 |
45 |
26 |
25 |
12 |
330 |
220 |
52 |
25.400.10.51 |
10 |
24 |
Straight |
400 |
345 |
300 |
190 |
400 |
60 |
50 |
32 |
30 |
13 |
370 |
260 |
80 |
Minimum Ultimate Strength = 4 x WLL.
WLL= Working Load Limit.
Grooves can be adapted to other wire sizes.
No test certificate possible.
|
