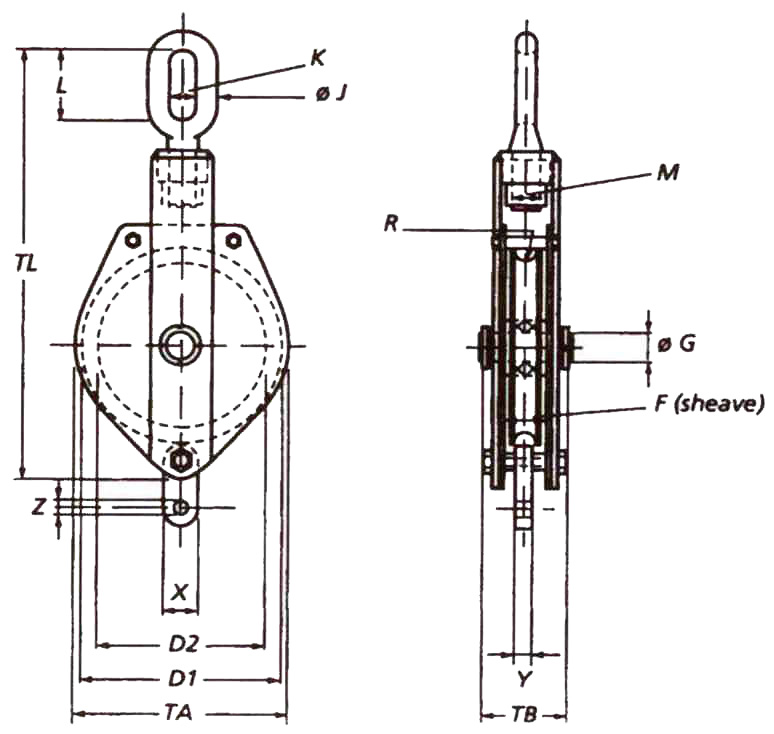

CARGO BLOCKS WITH BECKET
Stock No. |
WLL
(tons) |
Wire up
to (mm) |
Dimensions (mm) |
Weight
(kgs)
|
D1 |
D2 |
F |
G |
J |
K |
L |
M |
R |
TA |
TB |
TL |
X |
Y |
Z |
13.250.06.11 |
6 |
18 |
250 |
210 |
45 |
35 |
29 |
45 |
108 |
42 |
9.5 |
270 |
105 |
630 |
50 |
25 |
25 |
22 |
13.300.09.11 |
9 |
20 |
300 |
255 |
50 |
40 |
36 |
54 |
125 |
52 |
11 |
320 |
125 |
750 |
65 |
30 |
33 |
35 |
13.350.12.11 |
12 |
22 |
350 |
305 |
60 |
45 |
41 |
60 |
144 |
56 |
12 |
380 |
140 |
840 |
65 |
30 |
33 |
55 |
13.400.15.11 |
15 |
24 |
400 |
345 |
65 |
50 |
46 |
66 |
163 |
64 |
13 |
430 |
153 |
980 |
90 |
40 |
42 |
81 |
13.450.24.11 |
24 |
28 |
450 |
390 |
70 |
70 |
60 |
80 |
195 |
76 |
15 |
480 |
170 |
1130 |
95 |
45 |
48 |
145 |
Minimum Ultimate Strength = 4 x WLL.
WLL= Working Load Limit on head fitting.
These cargo blocks meet JIS-block specifications and can be used as an alternative for JlS-blocks.
Standard fitted with cylindrical roller bearings.
Cargo blocks can also be supplied with jaw, stud eye or duckbill eye.
|
