BH-313 Crosby® Forged Hooks
BH-313 |
|
|
- Wide range of sizes available: 1-10 Metric Ton capacity.
- Forged Alloy Steel.
- Designed for attachment to mobile lifting equipment to provide a pick point for easy sling attachment.
- Large weld pad.
- Heavy duty latch interlocks with the hook tip. Replacement latches available.
- Detailed installation and application instructions included with each hook.
|
| |
BH-313 Weld-On Hooks |
|
Working
Load Limit
(t)* |
BH-313
Stock No. |
Weight
Each
(kg) |

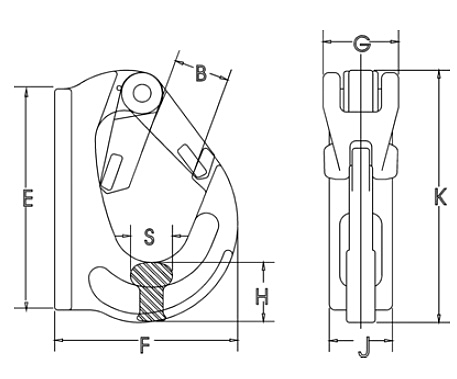

Dimensions
(mm) |
Replacement
Latch
Stock No. |
B |
E |
F |
G |
H |
J |
K |
S |
1 |
1029105 |
.52 |
23.1 |
97.0 |
71.0 |
36.1 |
26.9 |
25.9 |
107 |
18.0 |
1092101 |
2 |
1029114 |
.84 |
23.1 |
82.0 |
91.0 |
36.1 |
24.9 |
34.0 |
115 |
21.1 |
1092101 |
3 |
1029123 |
1.18 |
29.0 |
117 |
105 |
36.1 |
31.0 |
36.1 |
131 |
23.9 |
1092101 |
4 |
1029132 |
1.90 |
34.0 |
131 |
114 |
46.0 |
36.1 |
42.9 |
147 |
29.0 |
1092102 |
5 |
1029141 |
2.55 |
34.0 |
161 |
133 |
47.0 |
45.0 |
43.9 |
173 |
29.0 |
1092102 |
8 |
1029150 |
3.30 |
35.1 |
166 |
135 |
47.0 |
52.0 |
52.0 |
178 |
39.1 |
1092102 |
10 |
1029169 |
5.00 |
49.0 |
205 |
168 |
47.0 |
57.0 |
54.0 |
222 |
39.1 |
1092103 |
* Ultimate Load is 5 times the Working Load Limit. |
|
