ВЕРТЛЮГ CROSBY, ТИП G-403 (КОВАНЫЙ, ОЦИНКОВАННЫЙ)
Meets the performance
requirements of Federal Specification RR-C-271D, Type VII, Class 3, except for those provisions required of the contractor.For more information,
see page 361.
U.S. Patent 5,381,650
and other equivalents.
Ultimate Load is 5 times
the Working Load Limit

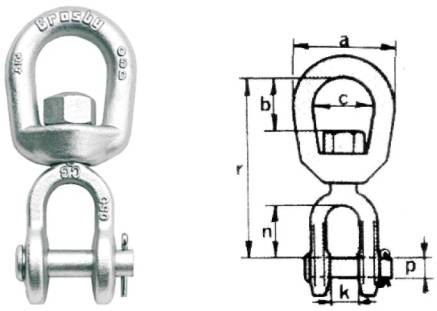

Art. number |
DOR
(ton) swl |
Type
(mm) |
A |
B |
C |
K |
N |
P |
R |
Weight
(kg) |
1016395 |
0,39 t |
6 |
32 |
18 |
19 |
12 |
22 |
6 |
67 |
0,10 |
1016411 |
0,57 |
8 |
42 |
21 |
26 |
13 |
22 |
8 |
75 |
0,15 |
1016439 |
1,02 |
10 |
51 |
24 |
32 |
16 |
27 |
10 |
92 |
0,30 |
1016457 |
1,63 |
13 |
64 |
34 |
38 |
19 |
33 |
13 |
114 |
0,61 |
1016475 |
2,36 |
16 |
76 |
40 |
45 |
24 |
38 |
16 |
135 |
1,12 |
1016493 |
3,27 |
19 |
89 |
45 |
51 |
29 |
45 |
19 |
154 |
1,76 |
1016518 |
4,54 |
22 |
102 |
52 |
57 |
30 |
52 |
22 |
178 |
2,66 |
1016536 |
5,67 |
25 |
114 |
59 |
64 |
45 |
71 |
29 |
217 |
4,46 |
1016572 |
8,16 |
32 |
143 |
68 |
79 |
52 |
71 |
35 |
240 |
7,14 |
1016590 |
20,5 |
38 |
178 |
106 |
102 |
73 |
113 |
27 |
375 |
24,8 |
|
