SNATCH BLOCKS

Stock No.

WLL
(tons)

Wire up
to (mm)

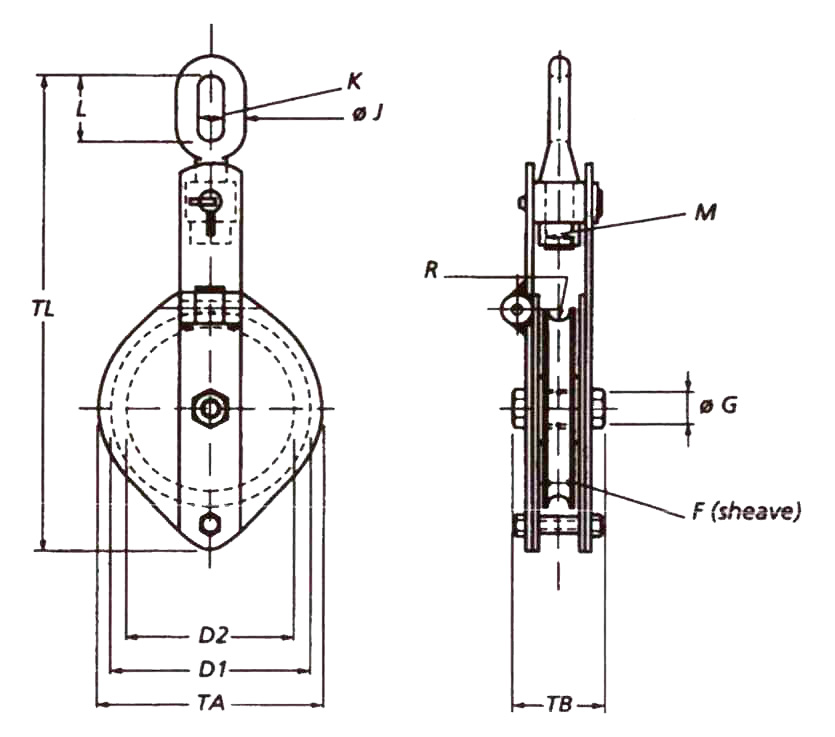

Dimensions (mm)

Weight
(kgs)

D1

D2

F

G

J

K

L

M

R

ТА

ТВ

TL

12.125.01.10

1

10

125

105

27

22

16

26

58

18

5.5

135

80

316

4.5

12.150.02.10

2

12

150

120

40

30

16

26

58

24

6.5

170

100

391

8

12.200.03.10

3

14

200

165

40

30

21

32

72

30

7.5

220

100

483

12.5

12.250.04.10

4

18

250

210

45

35

26

40

94

33

9.5

270

110

614

21

12.300.06.10

6

20

300

255

50

40

29

45

108

42

11

320

125

698

33

12.350.08.10

8

22

350

305

60

45

32

49

115

45

12

380

150

777

48

12.400.10.10

10

24

400

345

65

50

36

54

125

52

13

430

170

870

68

12.400.12.10

12

24

400

345

65

55

41

60

144

56

13

430

170

896

83

12.450.12.10

12

28

450

390

65

55

41

60

144

56

15

480

170

930

98

12.400.16.10

16

28

400

345

70

70

46

66

163

64

15

430

180

950

95

12.450.16.10

16

30

450

390

70

70

46

66

163

64

16

480

180

980

106

12.400.20.10

20

30

400

345

70

70

51

72

173

72

16

430

200

990

122

12.450.20.10

20

32

450

390

70

70

51

72

173

72

17

480

200

1020

130

12.400.25.10

25

32

400

345

80

80

60

80

195

76

17

430

224

1025

135

12.450.25.10

25

36

450

390

80

80

60

80

195

76

19.5

480

224

1045

150

12.450.30.10

30

36

450

390

85

100

60

90

220

80

19.5

480

227

1220

190

12.550.40.10

40

42

550

495

115

120

-

96

96

90

22.5

580

240

1140

250

Minimum Ultimate Strength = 4 x WIL.

WLL= Working Load Limit on head fitting.
Snatch blocks can be supplied with becket, the last digit of the stock number should be 1 (instead of 0).
Standard supplied with bronze bearings, other bearings available on request.
Standard supplied with swivel oval eye up to 30 tons, for over 30 tons with swivel stud eye.
Snatch blocks can be supplied with swivel hook, swivel stud eye or swivel jaw.
